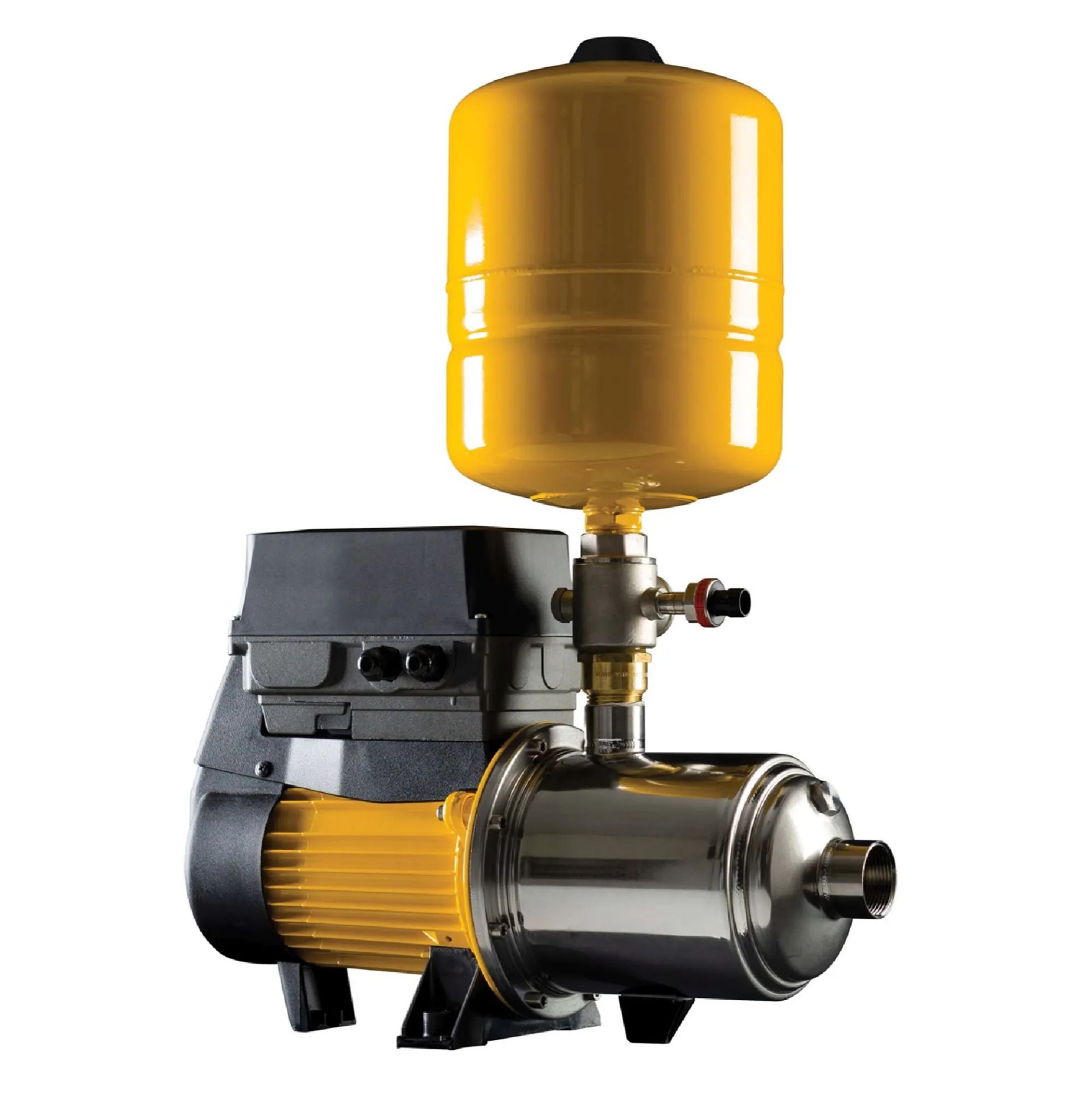

DAVEY DYNADRIVE CONSTANT PRESSURE SYSTEM SERIES
Pressure never felt so good!
DynaDrive is our latest all-in-one home pressure system to solve water pressure issues. As a constant pressure pump, the variable speed drive maintains water pressure at a fixed point regardless of an increase or decrease in water demand for your household.
The number of taps being used in your home doesn't impact your water pressure or flow, with DynaDrive's constant pressure, you can keep pressure constant and steady. As taps are turned off, the drive adjusts automatically, keeping the pressure constant while saving energy.
With DynaDrive you can expect:
- Consistent pressure when another tap is turned on.
- Smooth and quiet flow.
- Reduction in water hammer.
- Reduced operating costs.
- Quiet pump operation.
DynaDrive features an integrated controller that is easy to set up and use. It allows you to set your desired water pressure while also being energy efficient. By reducing the pressure on your system when it's not needed, DynaDrive reduces the energy consumed, saving you money.
DynaDrive has been certified and tested to comply with the requirements of the AS/NZS 4020 standard. The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.
FEATURES
Davey DynaDrive is a Horizontal multistage centrifugal pump with all hydraulic parts in stainless steel - suitable for high water temperatures, corrosion and wear resistant, compact design and easy to install.
Models in the range:
- DD60-10 - max. flow up to 85 lpm
- DD90-11 - max. flow up to 125 lpm
Stainless-steel impellers with high-efficiency impeller profile and thick self-centring impeller neck rings for:
- High efficiency
- Reduced power consumption
- Low noise output
Air purging valve and stage porting:
- Easier priming
- Less susceptible to air leaks
- Improved dependability
Impellers mounted directly on extended motor shaft:
- Maximise performance per stage
- High efficiency
- Long motor and pump life
- Increased wear resistance
Pump casing assembly attached to motor bracket at 8 points with o'ring seal:
- Complete stainless casing
- Better sealing
- Longer service life
Davey built, totally enclosed fan cooled (TFEC) electric motor:
- Sealed and greased for life motor bearings
- Oversized drive bearing
- Longer life
- Easy service
- Economical and quiet running
Please refer to the documentation for all features and full technical specifications.
Davey DynaDrive now available as a pre-assembled daisy chain constant pressure pump.
Assembled with up to 2 units as a daisy chain, DynaDrive can now handle double the demand, with double the flow rate. Easy plug and play installation. Constant water pressure, when you need it.
APPLICATIONS
Constant pressure system for:
- Household and domestic water supply.
- Farming and agricultural water systems.
- Irrigation and turf watering systems.
- Automatic general water transfer.

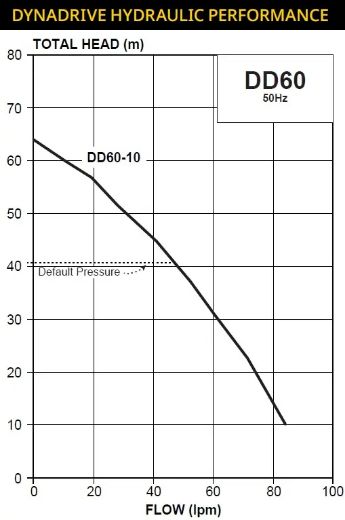

OPERATING LIMITS
Maximum flow rate @ 300kPa 60L/min
Maximum flow rate @ 400kPa 48L/min
Maximum flow rate @ 500kPa 25L/min
Maximum casing pressure 1,000kPa
Maximum system pressure 600kPa
Minimum cut-in pressure 10kPa (gauge pressure)
Default cut-in pressure 50kPa less than set pressure
Maximum cut-in pressure 20kPa less than set pressure
Operating water temp range 0-80 degrees C
Operating ambient/air temp range 0-50 degrees C
Pipework 1 1/4" FBSP Inlet / 1" FBSP Outlet
