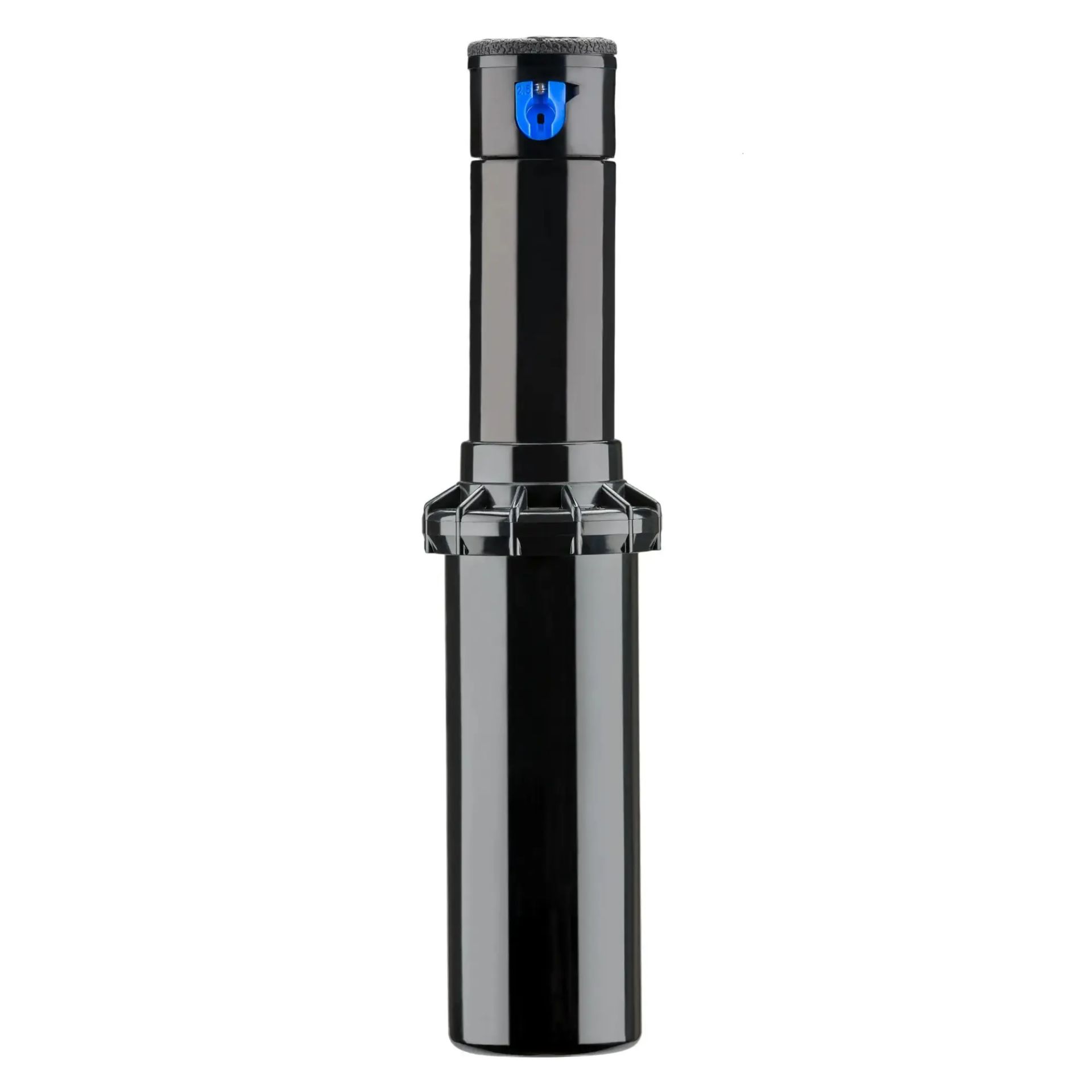

HUNTER PGP ULTRA ROTOR SERIES
This Upgrade of the Trusted PGP is Packed with New Features
The PGP Ultra takes the foundation of the original best-selling PGP rotor and raises the bar with a range of powerful new features developed over three decades of research, customer feedback, and lab testing. Upgrades include a non-strippable drive and automatic arc return that allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned.
Other advanced features include 34 nozzle options with several radius choices, and a headed and slotted setscrew. The flexibility of the PGP Ultra gives system installers an array of efficient options on any site. For peak efficiency, choose the PGP-04 with an optional pressure-regulated body that reduces incoming pressures of up to 7 bar to 3.1 bar (700 kPa to 310 kPa), for water savings up to 25%.
FEATURES
- Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°
- Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
- Part and full-circle in one model for flexibility across landscapes and reduced inventory
- Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver
- Flat-top nozzles allow fast, easy insertion
- QuickCheck™ arc mechanism for fast arc adjustment
ADVANCED FEATURES
- AUTOMATIC ARC RETURN. This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.
- NON-STRIPPABLE DRIVE. The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.
- PART AND FULL CIRCLE IN ONE MODEL. Patented non-reversing 360° for part and full circle in one model, from 50° to 360°.
- HEADED AND SLOTTED SET SCREW. Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.
- OPTIONAL RECLAIMED WATER ID. Purple caps indicate where non-potable irrigation water is being used.
- DRAIN CHECK VALVE (UP TO 3.0 M OF ELEVATION). As air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
OPERATING SPECIFICATIONS
- Nozzle choices: 34
- Radius: 4.9 to 14.0 m
- Flow: 0.07 to 3.23 m3/hr; 1.2 to 53.8 l/min
- Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
- Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa Precipitation rate: 10 mm/hr approximately
- Nozzle trajectory: standard = 25°, low-angle = 13°
- Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
- Warranty period: 5 years
