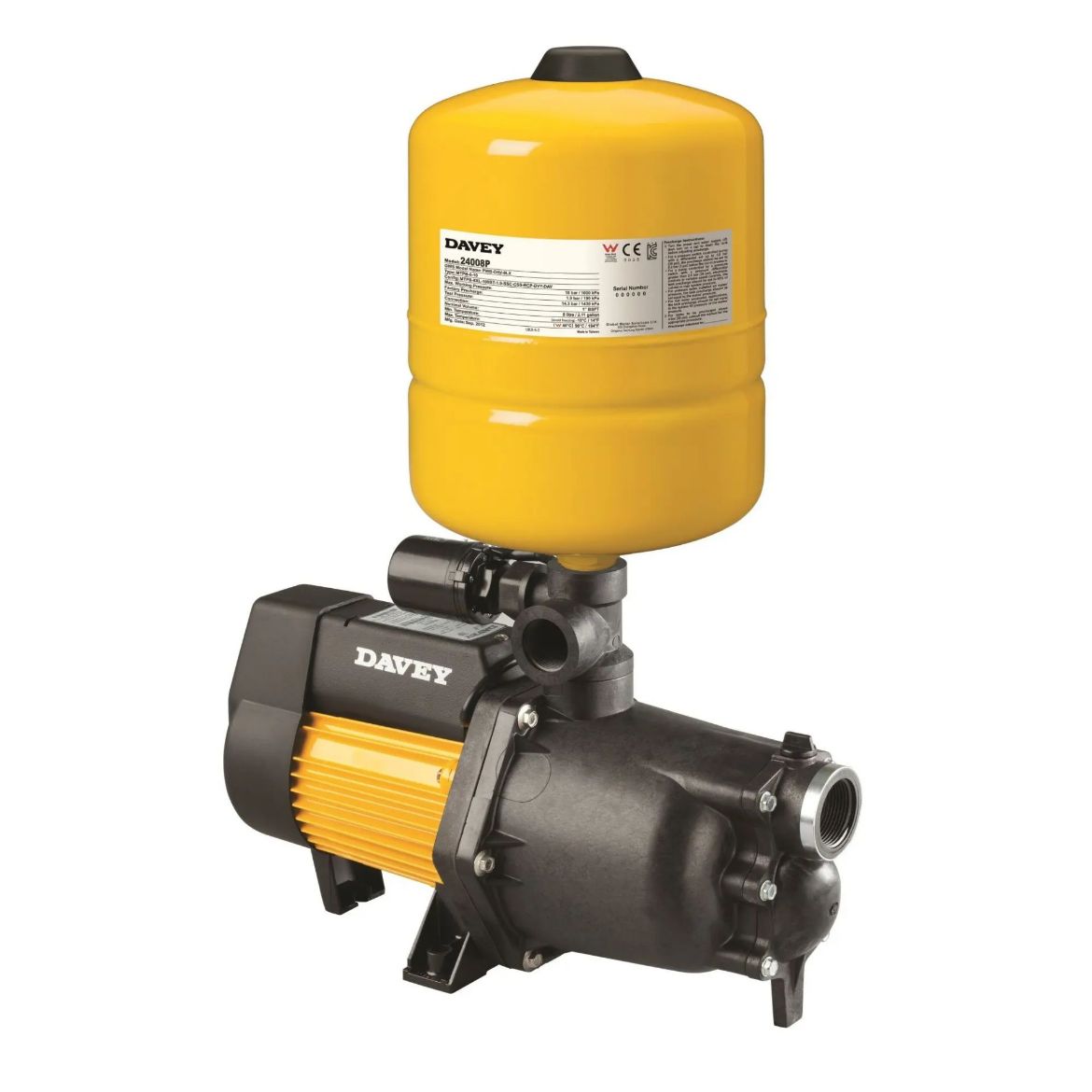

XJ DYNAJET WATER PRESSURE SYSTEM WITH PRESSURE SWITCH

Davey DynaJet pumps are a compact and economical, single stage jet assisted water pressure system, operated by a pressure switch, with an optional 40P base-mounted tank.

They are ideal for average sized residential homes with modern appliances right through to large double storey homes, pressure boosting applications and for water transfer.

These pumps are also great for domestic irrigation needs.

The DynaJet water pressure systems have been certified and tested to comply with the requirements of the AS/NZS 4020 standard. The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.

FEATURES

Manufactured from the highest quality corrosion resistant materials, the DynaJet is low maintenance and designed for frequent starts.

Models in the range include:

• XJ50P - max. flow up to 50 lpm
• XJ50P8 - max. flow up to 50 lpm
• XJ50P18 - max. flow up to 50 lpm
• XJ70P - max. flow up to 70 lpm
• XJ70P8 - max. flow up to 70 lpm
• XJ70P18 - max. flow up to 70 lpm
• XJ90P - max. flow up to 90 lpm
• XJ90P18 - max. flow up to 90 lpm

Please refer to the documentation for all features and full technical specifications.

APPLICATIONS

There are 3 models available in the XJ range to suit medium to large homes :-

• Average homes with modern appliances to large double storey homes.
• Domestic water supply.
• Pressure boosting.
• Automatic water transfer.

OPERATING LIMITS

Capacities to 90Lpm
Maximum total head 46m
Cut-in pressure (factory setting) 180kPa
Cut-out pressure (factory setting) 390kPa
Maximum ambient temperature 50ºC
Maximum water temperature 55ºC
Maximum suction head 7m
Inlet size (BSP) 1¼" F
Outlet size (BSP) 1" F
